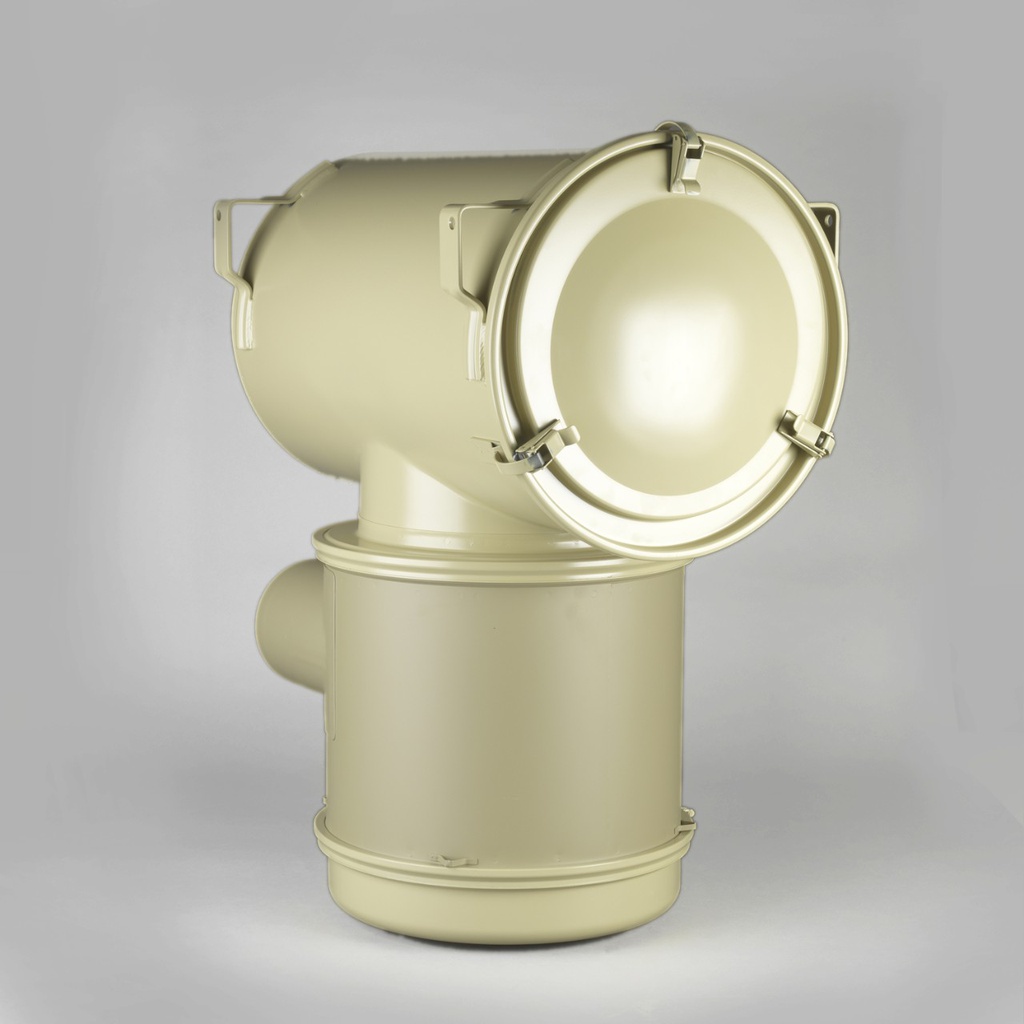

Technical Data:
Width: 457 MM
Inlet Diameter: 152 MM
Outlet Diameter: 203.2 MM
Body Diameter Maximum: 406 MM
Body Length: 609.7 MM
Overall Length: 750.824 MM
Rated Flow LR: 40 CMM
Rated Flow MR: 37 CMM
Rated Flow HR: 41.5 CMM
Restriction LR: 152 MM H2O
Restriction MR: 203 MM H2O
Restriction HR: 254 MM H2O
Style: Tubular
Family: STG
Brand: Donaclone™
Accessories:
CUVE GASKET SBG SDG FWG SDA 16
CUVE COLLIER 16"
CUVE STG 16"
DUST CUVE, VACUATOR VALVE HORIZONTAL STYLE
DUST CUVE, VACUATOR VALVE VERTICAL STYLE
CUVE 14" QUICK REL.
VACUATOR VALVE
FILTRE A AIR SECURITE
FILTRE A AIR PRINCIPAL ROUND
ELEMENT
JOINT KIT
ATTACHE
DROP TUBE
| 1 | EIMCO - 64133050 (G161020) |
| 1 | ENMTP CPG - 5606336 (G161020) |
| 1 | ALLIED SYSTEM - 226636 (G161020) |
| 1 | LIEBHERR - 5606336 (G161020) |
| 1 | ASTEC UNDERGROUND - 3018051282 (G161020) |
| 1 | SANDVIK - 64133050 (G161020) |
| 1 | SIGMA AIR CONDITIONING - 460C028 (G161020) |
| 1 | BEST ENGINEERING - P05297 (G161020) |
| 1 | CMI - P1023185101 (G161020) |
| 1 | CMI - P1073185101 (G161020) |
| 1 | FRAM - 226636 (G161020) |
