M060232

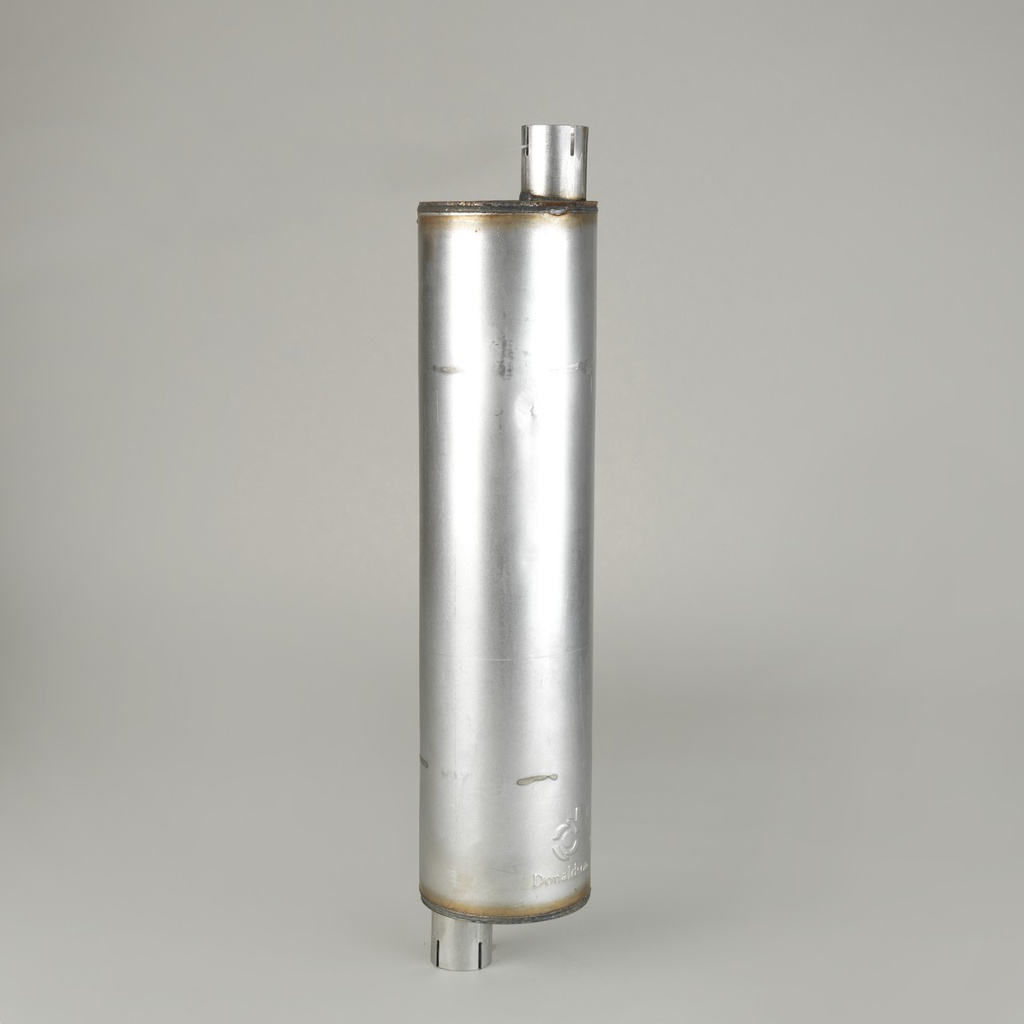

SILENCIEUX D'ECHAPPEMENT
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 51.31 MM
Outlet Diameter: 51.31 MM
Body Diameter Maximum: 152 MM
Body Length: 610 MM
Overall Length: 736.6 MM
Rated Flow LR: 8.4 CMM
Rated Flow MR: 11.9 CMM
Rated Flow HR: 14.6 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 15 DBA
Attenuation HR: 20 DBA
Inlet Clock Position: 6:00
Outlet Clock Position: 12:00
Style: Style 2
Accessories:
| 1 | EAGLE TRUCK PRODUCTS - E209 (M060232) |
| 1 | EATON - 5157178 (M060232) |
| 1 | FMC - 2269681 (M060232) |
| 1 | FORD - 9575M060232 (M060232) |
| 1 | FORD - 9575MZM060232P (M060232) |
| 1 | FORD - B7TZ5230A (M060232) |
| 1 | FORD - C5TZ5230C (M060232) |
| 1 | FORD - C6TZ5230G (M060232) |
| 1 | FORD - C6TZ5230H (M060232) |
| 1 | FORD - C7TZ5230E (M060232) |
| 1 | FORD - C7TZ5230K (M060232) |
| 1 | FORD - C9TZ5230A (M060232) |
| 1 | FREIGHTLINER - DNM060232 (M060232) |
| 1 | GRADALL - 86681083 (M060232) |
| 1 | GRIMMER SCHMIDT - 1011592 (M060232) |
| 1 | HAVAM - HD4310 (M060232) |
| 1 | HAVAM - HD4315 (M060232) |
| 1 | APE INDUSTRI AB - 3680 (M060232) |
| 1 | HEAVY DUTY MFG - 31002 (M060232) |
| 1 | HURRICANE COMPRESSOR - 1011592 (M060232) |
| 1 | A P PARTS - 3680 (M060232) |
| 1 | A P PARTS - 3680Q (M060232) |
| 1 | LULL - P17581 (M060232) |
| 1 | MINNPAR - 2980519892 (M060232) |
| 1 | MAREMONT - TD022 (M060232) |
| 1 | MAREMONT - TD22 (M060232) |
| 1 | NACCO MATERIALS - 515717800 (M060232) |
| 1 | INTERNATIONAL - 549464C1 (M060232) |
| 1 | INTERNATIONAL - DCM060232 (M060232) |
| 1 | NELSON - 86136M (M060232) |
| 1 | PETTIBONE - L847141 (M060232) |
| 1 | PETTIBONE - LL847141 (M060232) |
| 1 | RIKER - 60901 (M060232) |
| 1 | RIKER - HD200 (M060232) |
| 1 | RIKER - HD201 (M060232) |
| 1 | ROSCO - 34028 (M060232) |
| 1 | REXNORD - 2980519892 (M060232) |
| 1 | STEMCO - 1900401 (M060232) |
| 1 | STEMCO - 1909006 (M060232) |
| 1 | STEMCO - 1909010 (M060232) |
| 1 | STEMCO - 1909065 (M060232) |
| 1 | TRUCKEX - 3901 (M060232) |
| 1 | WALKER MANUFACTURING - 21003 (M060232) |
| 1 | WALKER MANUFACTURING - 21007 (M060232) |
| 1 | WALKER MANUFACTURING - 21022 (M060232) |
| 1 | WALKER MANUFACTURING - 21028 (M060232) |
| 1 | WALKER MANUFACTURING - 21124 (M060232) |
| 1 | WALKER MANUFACTURING - 21126 (M060232) |
| 1 | WALKER MANUFACTURING - 21127 (M060232) |
| 1 | WALKER MANUFACTURING - 21169 (M060232) |
| 1 | WALKER MANUFACTURING - 21287 (M060232) |
| 1 | WALKER MANUFACTURING - 21325 (M060232) |
| 1 | WALKER MANUFACTURING - 21331 (M060232) |
| 1 | WALKER MANUFACTURING - 21372 (M060232) |
| 1 | WALKER MANUFACTURING - 21495 (M060232) |
| 1 | WALKER MANUFACTURING - 21850 (M060232) |
| 1 | WALGAHN-MOTORENTECHN - 00810268 (M060232) |
| 1 | WALGAHN-MOTORENTECHN - 810268 (M060232) |
| 1 | WARNER & SWASEY - 86681083 (M060232) |
| 1 | WARNER & SWASEY - 86881083 (M060232) |
| 1 | B R LEE INDUSTRIES - 34028 (M060232) |
| 1 | AGCO - T0902013HP (M060232) |
| 1 | CASE/CASE IH - S230848 (M060232) |
| 1 | CHICAGO PNEUMATIC - IPS4174 (M060232) |
| 1 | CUB CADET - 549464C1 (M060232) |
| 1 | DART - MZM060232 (M060232) |
| 1 | DYNAFLEX - 87200177 (M060232) |
| 1 | DYNAFLEX - 87200177Q (M060232) |
| 1 | DROTT - 221694 (M060232) |
| 1 | DROTT - 230848 (M060232) |
| 1 | PARTS DISTRIBUTING - M22260 (M060232) |
