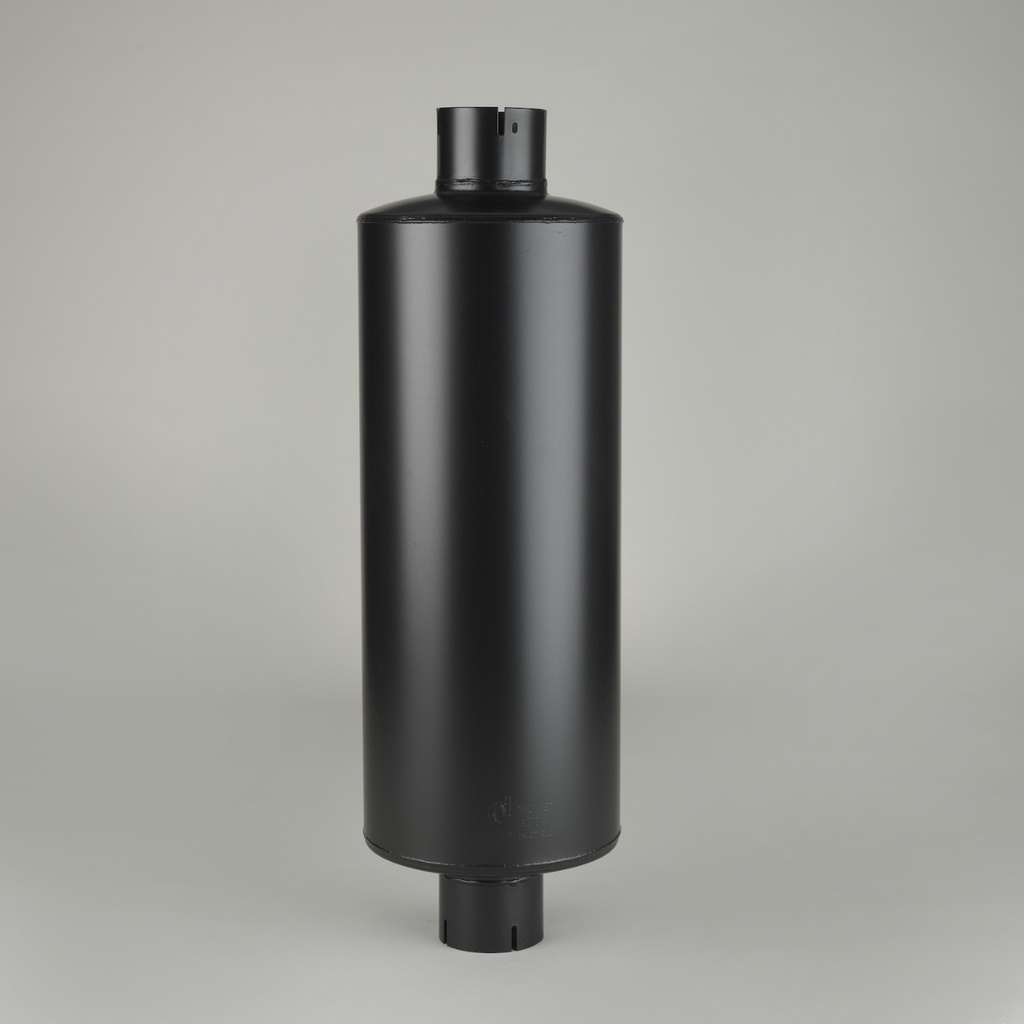

Technical Data:
Inlet Diameter: 102.11 MM
Outlet Diameter: 102.11 MM
Body Diameter Maximum: 256 MM
Body Length: 603.2 MM
Overall Length: 812.8 MM
Rated Flow LR: 32 CMM
Rated Flow MR: 44.4 CMM
Rated Flow HR: 56.6 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 12 DBA
Attenuation HR: 18 DBA
Style: Style 1
Accessories:
| 1 | AMERICAN AUGERS - 8EG1000403 (M101167) |
| 1 | NELSON - 201570N (M101167) |
| 1 | RAINBOW MANUFACTURING - 18416 (M101167) |
| 1 | VERMEER - 163642854 (M101167) |
